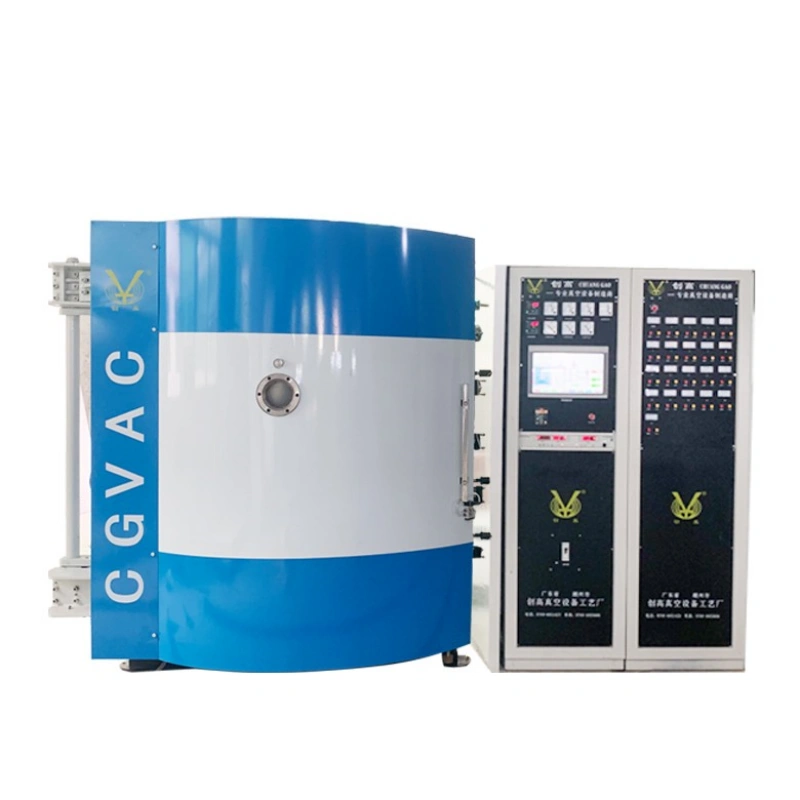

GLC-Beschichtungsanlage für funktionelle Beschichtungen aus graphitartigem Kohlenstoff, Hersteller: CGVAC
CGVAC GLC coating machines are designed for depositing Graphite-Like Carbon (GLC) films with low friction, high adhesion and excellent chemical stability. The equipment provides advanced functional coating solutions for mechanical components, electronic parts, medical devices and premium consumer products requiring enhanced durability and surface performance. Contact us for a custom vacuum coating machine solution!
Technische Parameter:
| Ziel-Materialien | Metals, alloys and various industrial components. |
| Beschichtungstechnologie | Vacuum plasma deposition technology |
| Funktionelle Beschichtungen | GLC and other hard & wear-resistant coatings. |
| Kernkomponenten | Bogenziel, Steuersystem, Pumpe |
| Anmeldung | Mechanical components, electronic parts, medical devices and premium consumer products, etc. |
| Personalisierung | Maßgeschneiderte Größe, Zielmaterial, Farbe, Vorrichtungsdesign und Prozessplan |
| Dienst | Mechanical/sample test reports, video outgoing inspection, and technical guidance. |
Produktdetails
Specifications of GLC Coating Machine:
| Modellnummer | Abmessung DxH (mm) | Endvakuum (Pa) | Pumpzeit (Min)) | Zielvorgaben (PCS) | Gesamtleistung (kW) |
| DZ1214 | 1200 × 1400 mm | ≤8×10-⁴ | ＜5 | 10 | 50 |
| DZ1416 | 1400 × 1600 mm | ≤8×10-⁴ | ＜5 | 14 | 60 |
| DZ1618 | 1600 × 1800 mm | ≤8×10-⁴ | ＜5 | 21 | 80 |
| DZ1818 | 1800 × 1800 mm | ≤8×10-⁴ | ＜5 | 28 | 110 |
| DZ2118 | 2100 x 1800 mm | ≤8×10-⁴ | ＜5 | 32 | 120 |
*Die Gerätespezifikationen können entsprechend den Kundenanforderungen angepasst werden. Die Höhe oder Tiefe kann zwischen 600 mm und 10000 mm variieren.
Features of GLC Coating Machine:
Advanced GLC Functional Coating Technology: Designed specifically for Graphite-Like Carbon (GLC) film deposition, the machine enables the production of advanced carbon-based coatings that combine graphite-like self-lubrication with excellent adhesion and film uniformity.
Low-Friction & Self-Lubricating Coating Capability: The equipment produces GLC coatings with excellent lubricating performance, reducing friction and wear on mechanical components, especially in oil-free, water-lubricated and demanding operating environments.
Low-Stress Deposition with Strong Film Adhesion: Optimized coating processes ensure low internal stress and strong adhesion, preventing cracking or peeling while maintaining long-term durability on complex components.
Niedertemperatur-Beschichtungsverfahren: The GLC coating system supports low-temperature deposition, making it suitable for precision parts, alloys and heat-sensitive substrates while preserving the original material properties.
Stable Vacuum Deposition System: Equipped with advanced vacuum control and plasma generation technology, the machine ensures uniform carbon film thickness, consistent coating quality and reliable batch production.
Intelligent Process Control System: The automatic control system allows precise adjustment of key coating parameters, including vacuum conditions, deposition cycles and process settings, ensuring stable and repeatable coating results.
Customized Equipment Configuration: CGVAC provides customized chamber sizes, fixture designs and equipment configurations according to different workpiece dimensions, production requirements and application needs.
GLC Coating Performance：
| Performance | Typical Value | Benefits |
|---|---|---|
| Oberflächenhärte | HV 400-700 | Improves wear resistance and surface durability |
| Friction Coefficient | 0.08-0.15 | Provides excellent self-lubrication and reduces friction loss |
| Internal Stress | 0.5-1.5 GPa | Ensures strong adhesion and reduces coating cracking |
| Electrical Resistivity | 10⁻⁴-10⁻² Ω·cm | Suitable for conductive protection applications |
| Deposition Temperature | Room Temperature – 120℃ | Compatible with heat-sensitive substrates |
| Chemical Stability | Excellent | Provides corrosion and chemical resistance |
Applications of GLC Coating Machine
Warum CGVAC wählen, professioneller Hersteller von PVD-Vakuumbeschichtungsanlagen?
Hohe Produktionseffizienz
Hervorragende Filmqualität
Intelligente Automatisierung
IndepFull-System Eigene Forschung und Entwicklung
Unterstützung bei der Anpassung
Technischer Dienst
Kontakt
FAQ
- F: Welche Arten von Materialien können mit PVD-Beschichtungsanlagen verarbeitet werden?
A: Sanitärartikel, Schmuck und Perlen, Gebrauchskeramik, Edelstahl, Glas, Kunststoffe sowie elektronische und optische Komponenten für dekorative und funktionale Beschichtungen.
- F: Können die CGVAC PVD-Vakuum-Beschichtungsanlagen individuell angepasst werden?
A: Ja. Wir bieten Standard- und vollständig maßgeschneiderte Lösungen, einschließlich Kammergröße, Beschichtungsverfahren, Kapazität, Farbe usw.
- F: Bieten Sie Installation und Schulung an?
A: Ja. Wir bieten weltweite Vor-Ort-Installation, Bedienerschulung und technischen Fernsupport.
