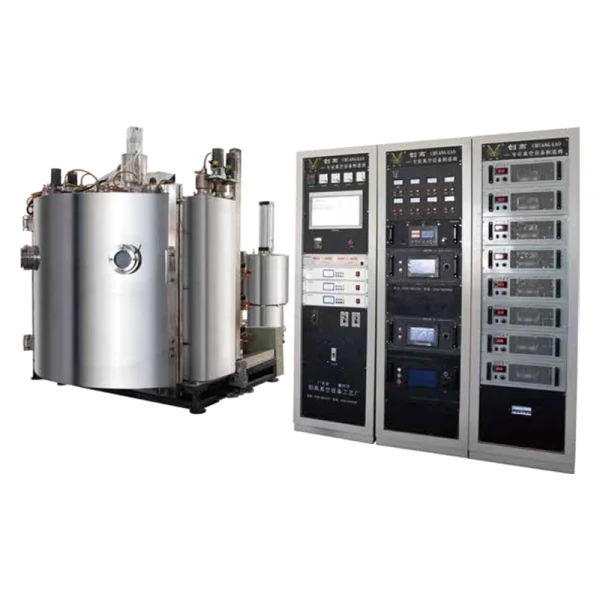

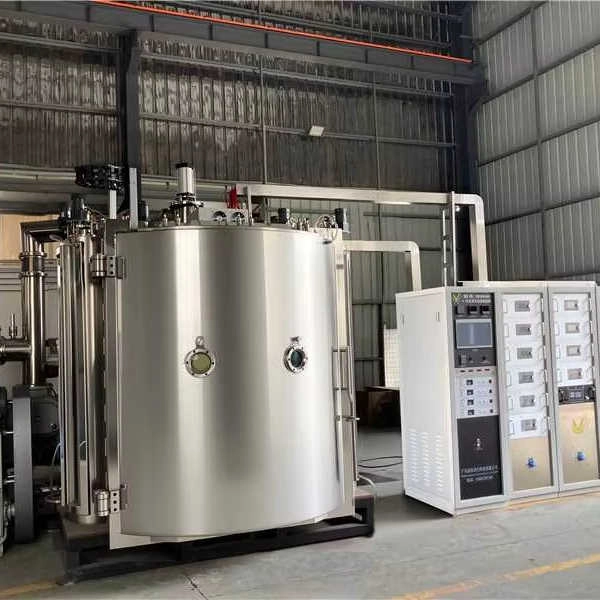

PVD Coating Machine for Roof Tiles with Magnetron Sputtering System Custom
CGVAC PVD coating machine for roof tiles uses magnetron sputtering technology to deliver uniform metallic finishes and consistent colors. Custom configurations are available for different tile sizes, coating effects, and production capacities. Contact us for a tailored PVD coating solution.
Technical Parameters:
| Target Materials | Titanium (Ti), Chromium (Cr), Zirconium (Zr), Stainless Steel, ITO, FTO and others |
| Industrial Gases | Argon (Ar), Nitrogen (N₂), Oxygen (O₂), H₂ (Hydrogen) |
| Coating Technology | Magnetron sputtering vacuum coating |
| Coating Color | Gold, rose gold, black, silver, blue, champagne, matte/satin colors, and different colors |
| Functional & Optical Films | ITO, SiO₂, TiO₂, Cr, Al, Ag, ITO/Ag/ITO, optical & electronic films |
| Core Components | Arc target, control system, pump |
| Application | Ceramic tiles, roof tiles, and decorative tiles |
| Customization | Customized size, target material, color, fixture design, and process plan |
| Service | Mechanical/sample test reports, video outgoing inspection, and technical guidance |
Product Detail
Specifications of PVD Coating Machine for Roof Tiles:
| Model Number | Dimension DxH (mm) | Ultimate Vacuum (Pa) | Pumping Time (Min) | Sputtering Power (kW) | Total Power (kW) |
| CZ1214 | 1200*1400mm | ≤8×10⁻⁴ | ＜5 | 40 | 50 |
| CZ1416 | 1400*1600mm | ≤8×10⁻⁴ | ＜5 | 60 | 60 |
| CZ1618 | 1600*1800mm | ≤8×10⁻⁴ | ＜5 | 80 | 80 |
| CZ1818 | 1800*1800mm | ≤8×10⁻⁴ | ＜5 | 160 | 110 |
| CZ2018 | 2000*1800mm | ≤8×10⁻⁴ | ＜5 | 160 | 120 |
*Equipment specifications can be customized according to customer requirements.
Features of the PVD Coating Machine for Roof Tiles:
Uniform Coating on Curved Tile Surfaces: Roof tiles often feature curved, grooved, or embossed surfaces. Optimized magnetron target arrangement and customized fixtures improve deposition uniformity across complex tile profiles and reduce uneven metallic finishes.

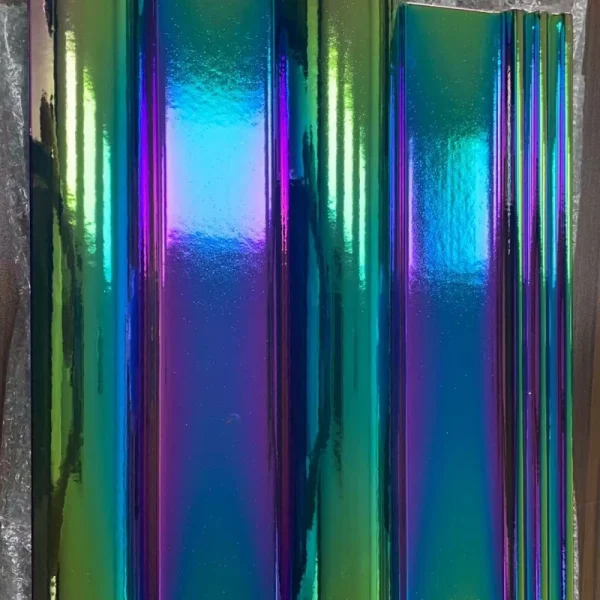

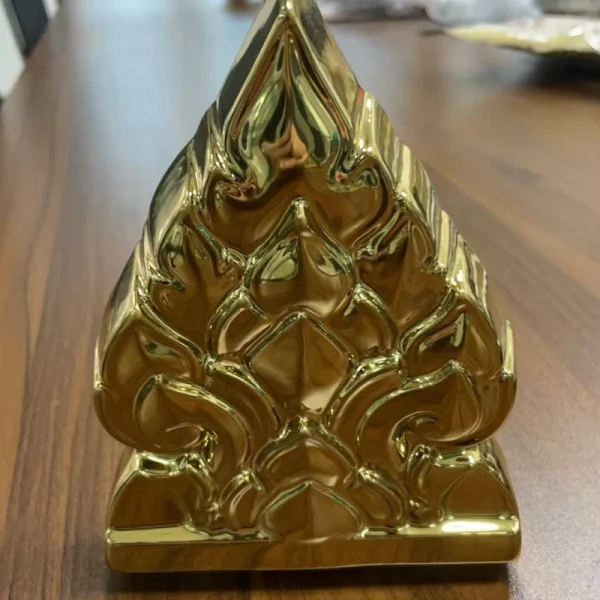

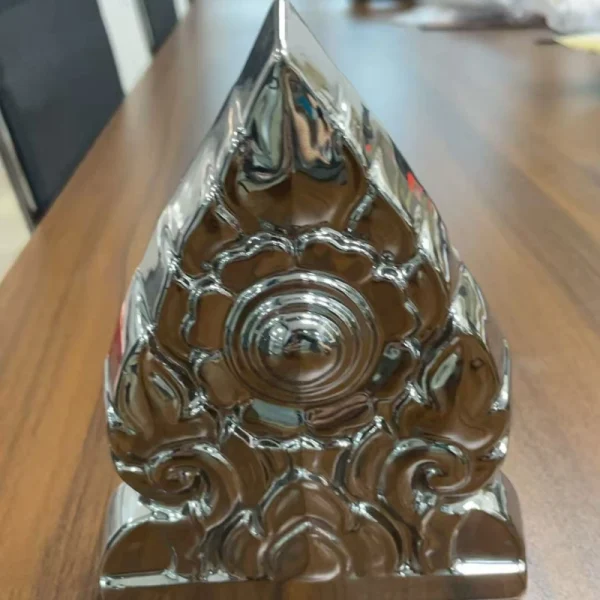

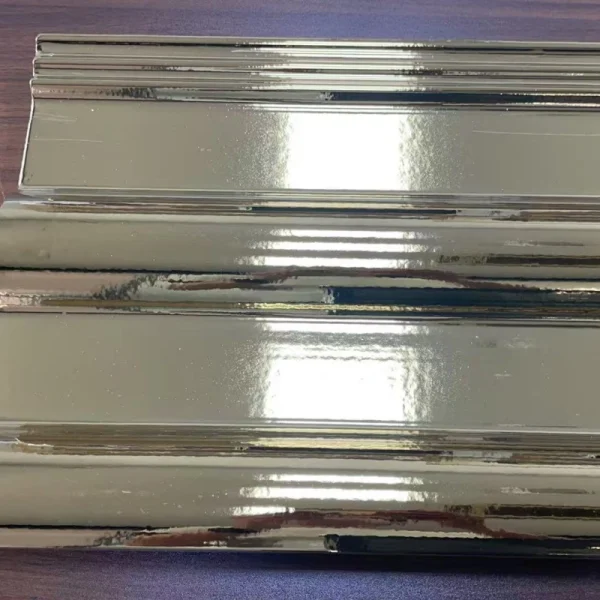

Consistent Colors Across Production Batches: Gold, silver, rainbow, and other decorative finishes are sensitive to process variations. Precise control of vacuum level, sputtering power, gas flow, and coating time helps maintain stable colors from batch to batch.
Flexible Finishes for Southeast Asian Markets: Villas, hotels, resorts, temples, and decorative buildings often require distinctive roof tile finishes. Adjustable sputtering processes support multiple metallic colors and customized surface effects without changing the basic production system.
Reliable Coating for Outdoor Roof Tiles: Roof tiles face strong sunlight, humidity, rainfall, transportation, and installation handling. Dense magnetron-sputtered films provide a stable decorative layer, while coating structures can be developed according to substrate and outdoor performance requirements.
Production Capacity Matched to Tile Size: Different roof tile dimensions and profiles directly affect chamber loading and output. Chamber size, target quantity, fixture layout, and loading capacity can be configured around actual tile specifications rather than using a standard machine configuration.
From Installation to Process Training: CGVAC supports machine installation, commissioning, operator training, coating parameter setup, and production troubleshooting, helping customers move from equipment delivery to stable tile coating production.
Applications of PVD Coating Machine for Roof Tiles
Why Choose CGVAC, Professional PVD Vacuum Coating Machine Manufacturer
High Production Efficiency
Excellent Film Quality
Intelligent Automation
IndepFull-System In-House R&D
Customization Support
Technical Service
Related Products
Contact Us
FAQ
- Q: What types of materials can PVD coating machines process?
A: Sanitary ware, jewelry &beads, daily ceramics, stainless steel, glass, plastics, and electronic & optical components for both decorative and functional coatings.
- Q: Can the CGVAC PVD vacuum coating machines be customized?
A: Yes. We offer standard and fully customized solutions, including chamber size, coating process, capacity, and color etc.
- Q: Do you provide installation and training?
A: Yes. We provide global on-site installation, operator training, and remote technical support.
