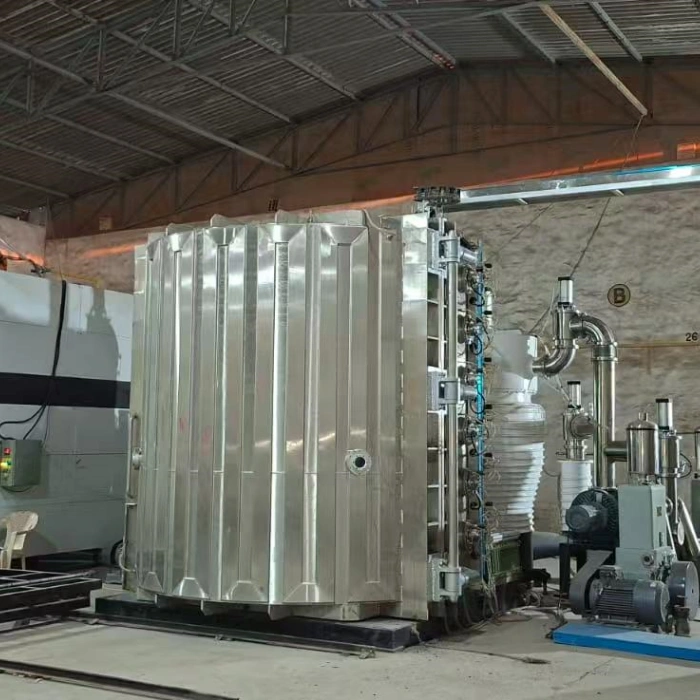

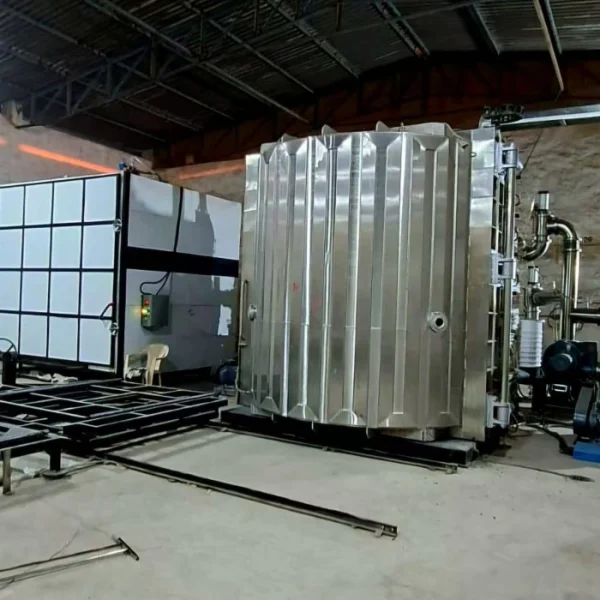

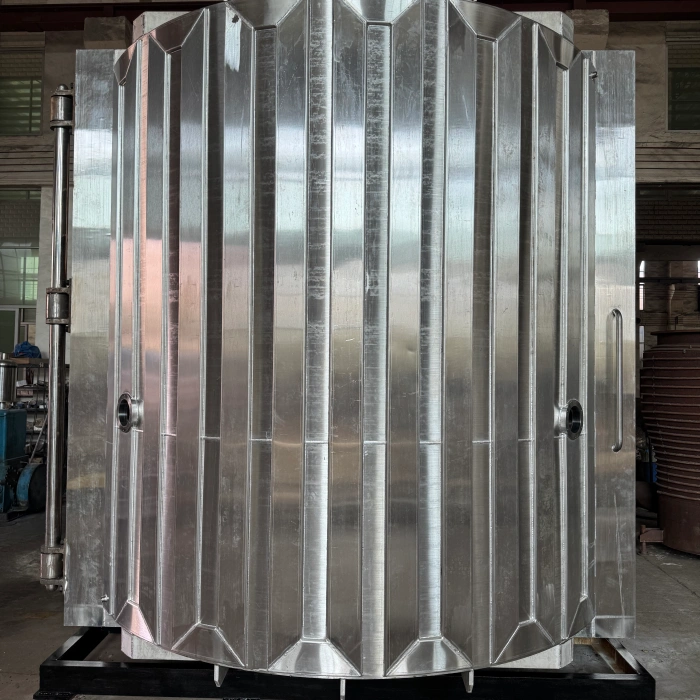

PVD Coating Machine for Ceramic Tiles, Multi-Arc Ion Vacuum Coating Machine Custom
PVD coating machine for ceramic tiles uses advanced multi-arc ion coating technology to create durable metallic finishes, premium colors, and enhanced surface performance for ceramic tiles. CGVAC provides customized vacuum coating solutions with professional technical support. Contact us for your tile coating project.
Technical Parameters:
| Target Materials | Titanium (Ti), Chromium (Cr), Zirconium (Zr), TiAl, Ni, Cu, Al, Fe, etc |
| Industrial gases | Argon (Ar), Nitrogen (N₂), Acetylene (C₂H₂), Oxygen (O₂) |
| Coating Technology | Multi-arc ion vacuum coating |
| Coating Color | Titanium silver, gold, rose gold, purple, sapphire blue, pearl, amber, deep gray, chrome black, and multicolor |
| Functional Coatings | TiN, TiCN, CrN, ZrN, TiAlN, CrAlN, DLC and other hard & wear-resistant coatings. |
| Core Components | Arc target, control system, pump |
| Application | Ceramic tiles |
| Customization | Customized size, target material, color, fixture design, and process plan |
| Service | Mechanical/sample test reports, video outgoing inspection, and technical guidance. |
Product Detail
Specifications of PVD Coating Machine for Ceramic Tiles:
| Model Number | Dimension DxH (mm) | Ultimate Vacuum (Pa) | Pumping Time (Min) | Targets (PCS) | Total Power (KW) |
| DZ1214 | 1200*1400mm | ≤8×10⁻⁴ | ＜5 | 10 | 50 |
| DZ1416 | 1400*1600mm | ≤8×10⁻⁴ | ＜5 | 14 | 60 |
| DZ1618 | 1600*1800mm | ≤8×10⁻⁴ | ＜5 | 21 | 80 |
| DZ1818 | 1800*1800mm | ≤8×10⁻⁴ | ＜5 | 28 | 110 |
| DZ2118 | 2100x1800mm | ≤8×10⁻⁴ | ＜5 | 32 | 120 |
*Equipment specifications can be customized according to customer requirements. Height or depth can range from 600mm to 10000mm.
Features of PVD Coating Machine for Ceramic Tiles:
High-Performance Multi-Arc Ion Coating System: Advanced arc ion evaporation technology ensures dense, uniform PVD coatings with excellent adhesion for ceramic tiles and decorative surfaces.
Stable Vacuum Environment & Precise Process Control: Equipped with reliable vacuum systems and intelligent control technology to achieve consistent color, thickness, and coating quality for large-scale tile production.

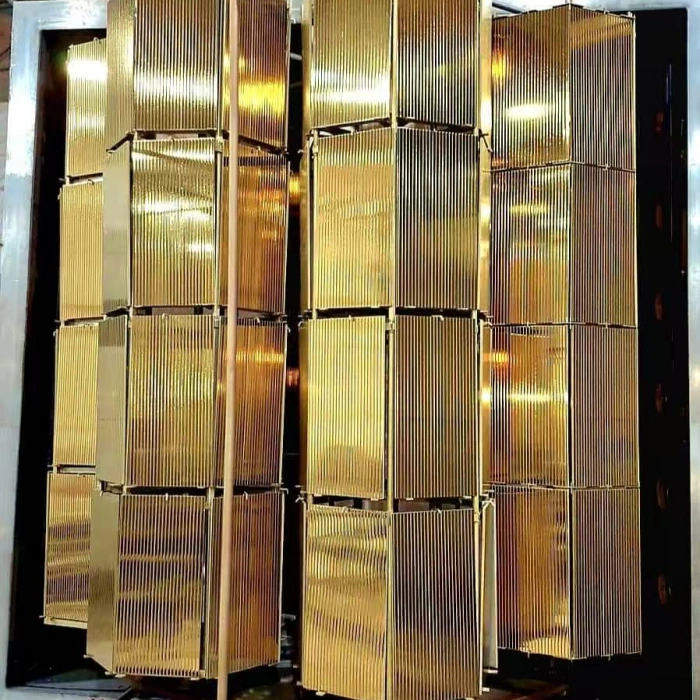

Premium Decorative & Functional Tile Finishes: Creates metallic, mirror, and customized color effects while enhancing surface hardness, wear resistance, and durability of ceramic tiles.
Efficient Batch Coating for Industrial Production: Large chamber design and optimized coating processes enable high-volume processing of ceramic tiles with improved production efficiency and lower operating costs.
CGVAC Customized PVD Solutions from Manufacturer: As a professional vacuum coating equipment manufacturer, CGVAC provides customized coating systems, process support, and turnkey solutions for different tile applications. Support for different tile coating requirements.
Applications of PVD Coating Machine for Ceramic Tiles
Why Choose CGVAC, Professional PVD Vacuum Coating Machine Manufacturer
High Production Efficiency
Excellent Film Quality
Intelligent Automation
IndepFull-System In-House R&D
Customization Support
Technical Service
Related Products
Contact Us
FAQ
- Q: What types of materials can PVD coating machines process?
A: Sanitary ware, jewelry &beads, daily ceramics, stainless steel, glass, plastics, and electronic & optical components for both decorative and functional coatings.
- Q: Can the CGVAC PVD vacuum coating machines be customized?
A: Yes. We offer standard and fully customized solutions, including chamber size, coating process, capacity, and color etc.
- Q: Do you provide installation and training?
A: Yes. We provide global on-site installation, operator training, and remote technical support.
