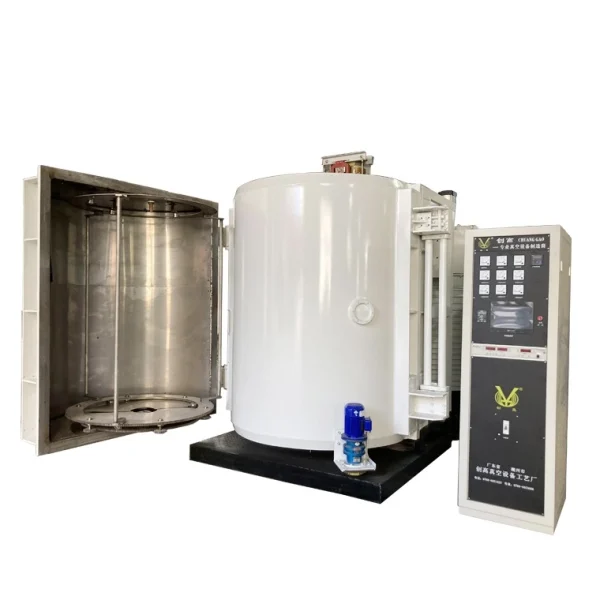

Custom PVD Coating Machine for Beads with Vacuum Evaporation System
CGVAC PVD coating machine for beads uses vacuum evaporation technology to create uniform, bright decorative finishes on glass, acrylic, and other decorative beads. Designed for batch production, the system provides stable vacuum control, flexible loading, and customizable process configurations for different bead materials, sizes, and coating requirements. Contact CGVAC to get a vacuum coating solution for your bead production.
Technical Parameters:
| Target Materials | Al Wire, Cu, Ag, Cr (thermal), Decorative Metals |
| Coating Technology | Evaporation vacuum coating |
| Functional & Optical Films | Mainly for decorative coatings, it can be integrated with UV coating or spray layers. |
| Core Components | Arc target, control system, pump |
| Application | Plastics, glass, acrylic, and other bead substrates |
| Customization | Customized size, target material, color, fixture design, and process plan |
| Service | Mechanical/sample test reports, video outgoing-inspection, and technical guidance. |
Product Detail
Specifications of PVD Coating Machine for Beads:
| Model Number | Dimension DxH (mm) | Ultimate Vacuum (Pa) | Pumping Time (Min) | Total Power (kW) |
| ZZ1214 | 1200*1400mm | ≤8×10⁻⁴ | ＜5 | 35 |
| ZZ1416 | 1400*1600mm | ≤8×10⁻⁴ | ＜5 | 65 |
| ZZ1618 | 1600*1800mm | ≤8×10⁻⁴ | ＜5 | 75 |
| ZZ1820 | 1800*2000mm | ≤8×10⁻⁴ | ＜5 | 90 |
| ZZ2020 | 2000*2000mm | ≤8×10⁻⁴ | ＜5 | 105 |
*Equipment specifications can be customized according to customer requirements.
Features of the PVD Coating Machine for Beads:
Uniform Coating for Complex Bead Surfaces: Small spherical and irregular beads can be difficult to coat evenly. Optimized fixture and rotation designs improve exposure during deposition, helping achieve more uniform coverage, brightness, and color consistency across each batch.
High-Efficiency Batch Vacuum Evaporation: The vacuum evaporation system provides fast deposition and efficient processing for large quantities of small decorative beads, helping manufacturers increase batch output while maintaining stable coating performance and reducing production cycle time.
Bright & Diverse Decorative Finishes: Precise evaporation and vacuum process control enable bright metallic, reflective, and colorful surface effects for glass, crystal, acrylic, and decorative beads, supporting different product styles and customized finishing requirements.
Flexible Processing for Different Bead Materials: Glass, plastic, acrylic, and other bead substrates have different processing requirements. Vacuum level, evaporation parameters, loading configuration, and other process settings can be adjusted according to the substrate and desired coating effect.
Customized System for Your Bead Production: CGVAC configures the vacuum chamber, pumping system, evaporation source, fixtures, rotation mechanism, and control system according to your bead material, size, target finish, batch capacity, and production process, providing a complete coating solution rather than a standard machine.
Custom PVD Coating Machine for Beads
Why Choose CGVAC, Professional PVD Vacuum Coating Machine Manufacturer
High Production Efficiency
Excellent Film Quality
Intelligent Automation
IndepFull-System In-House R&D
Customization Support
Technical Service
Related Products
Contact Us
FAQ
- Q: What types of materials can PVD coating machines process?
A: Sanitary ware, jewelry &beads, daily ceramics, stainless steel, glass, plastics, and electronic & optical components for both decorative and functional coatings.
- Q: Can the CGVAC PVD vacuum coating machines be customized?
A: Yes. We offer standard and fully customized solutions, including chamber size, coating process, capacity, and color etc.
- Q: Do you provide installation and training?
A: Yes. We provide global on-site installation, operator training, and remote technical support.
