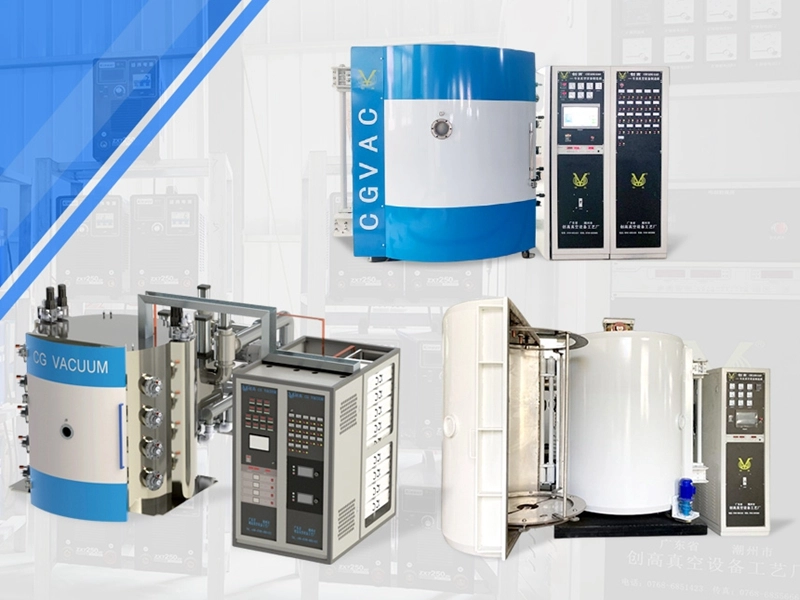

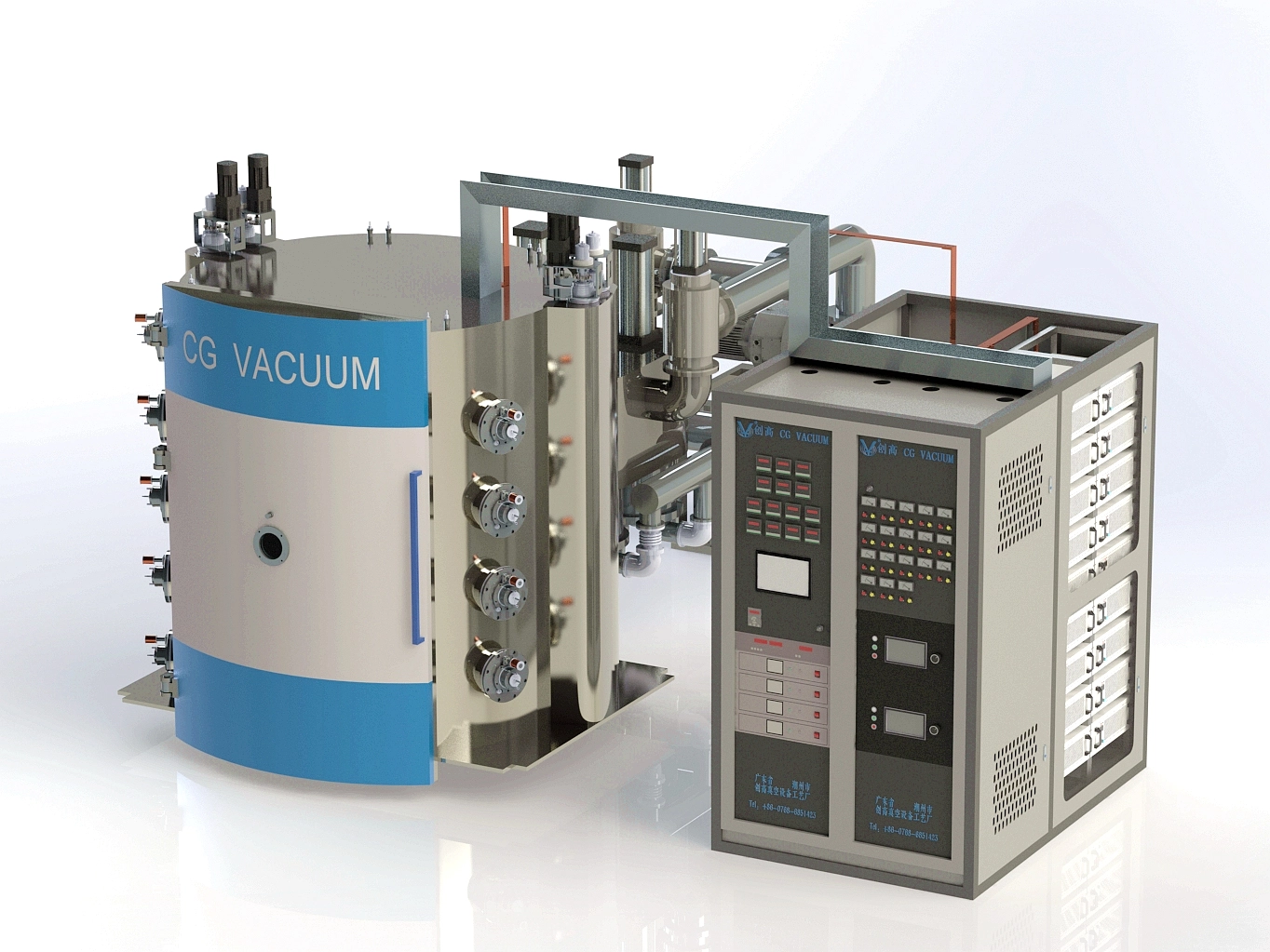

Custom PVD Coating Machine Solution

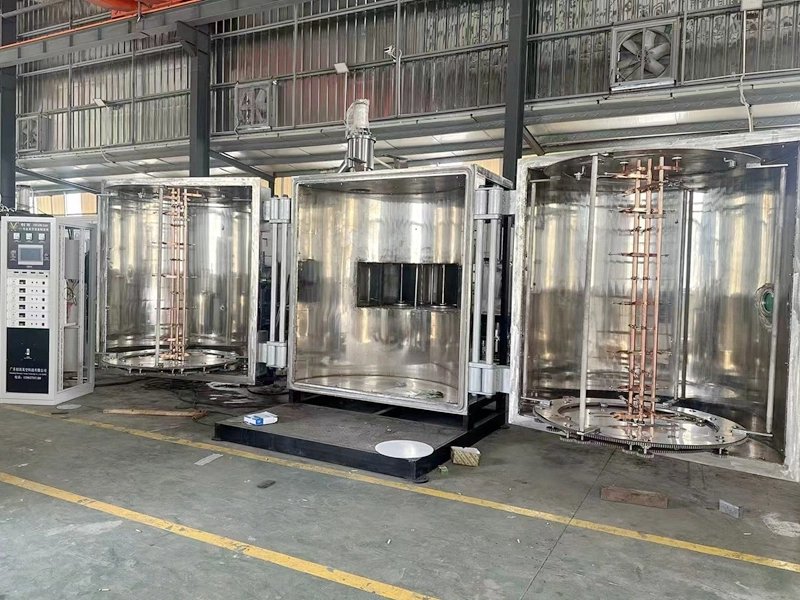

The chamber diameter, height, shelf loading structure, and door opening method are customized according to the product’s size, shape, and loading method.

Whether it’s tiny precision parts, complex curved ceramic surfaces, glassware, or metal products, we can design the most suitable PVD vacuum coating machine chamber space and tooling structure to ensure stable deposition uniformity in every batch.

We offer flexible PVD coating machine capacity customization for different production cycles and delivery times.

Typical cycle times are 12–20 minutes per batch, with actual cycle times depending on the product material, structure, and required coating process. By optimizing pump efficiency, cooling systems, target quantity, heating methods, and tooling load, we can create coating equipment with shorter production cycles and higher output efficiency for you.

To meet diverse industry and performance targets, CGVAC offers a variety of PVD coating machine process routes, supporting independent or combined configurations:

Multi-arc ion plating (ARC): High adhesion and hardness for metals, stainless steel, and tools.

Magnetron sputtering: Uniform coating with excellent optical performance for electronics, glass, and ceramics.

Evaporation: High-volume decorative coating for jewelry, plastics, and daily-use items.

By adjusting target layout, heating, ion cleaning, gas input, and deposition rate, the machine can meet diverse industry requirements for film thickness, adhesion, and optical performance.

CGVAC’s custom PVD vacuum coating machine supports a wide range of decorative colors and functional coatings, ensuring stable batch quality and high consistency:

Decorative Colors: Silver, Gold, Rose Gold, Pearl, Multicolor, Rainbow, Blue, Purple, Amber, Wine Red, Black, etc.

Optical/Functional Coatings: Anti-reflective film, conductive film, abrasion-resistant film, hard film, barrier film, protective film, etc.

Adjustable process parameters and modular configuration guarantee the precision, uniformity, adhesion, and repeatability of the coatings.

Based on production needs, CGVAC can customize the control system and process parameters to achieve highly automated, stable, and reliable operation.

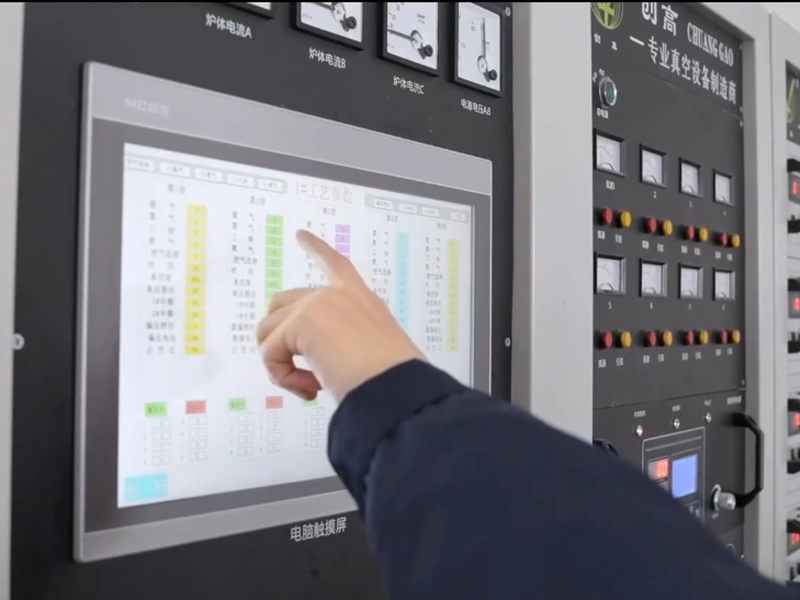

·Customizable PLC program logic and touch-screen UI.
·Supports process database and automatic parameter retrieval.
·Industry-specific coating parameters can be preset, ensuring ease of operation and high consistency.
·Supports automatic vacuuming, heating, cooling, and circulation operation, achieving full automation.

Ensures stable operation of the equipment in the production environment, achieving optimal capacity and process results
