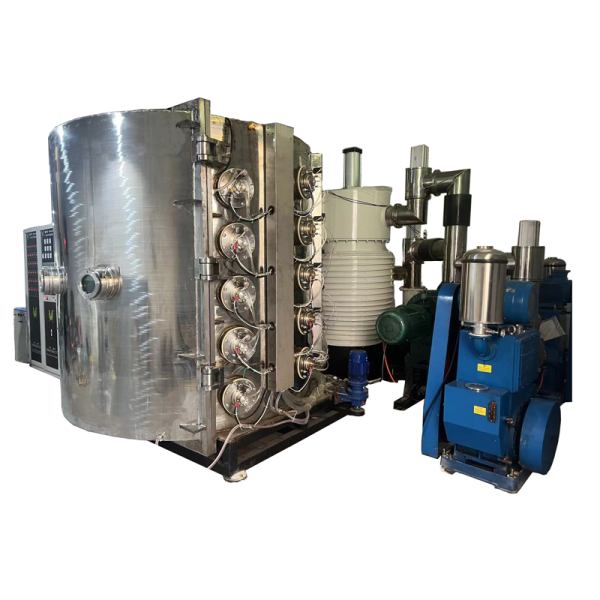

PVD Coating Machine for Furniture, Multi-Arc Ion Vacuum Coating Machine China
CGVAC high-efficiency multi-arc ion PVD coating machine for furniture, providing wear-resistant, corrosion-resistant, and colorful finishes. Eco-friendly, scalable, and customizable. Contact us for a custom vacuum coating machine solution!
Technical Parameters:
| Target Materials | Titanium (Ti), Chromium (Cr), Zirconium (Zr), TiAl, Ni, Cu, Al, Fe, etc |
| Industrial gases | Argon (Ar), Nitrogen (N₂), Acetylene (C₂H₂), Oxygen (O₂) |
| Coating Technology | Multi-arc ion vacuum coating |
| Coating Color | Titanium silver, gold, rose gold, purple, sapphire blue, pearl, amber, deep gray, chrome black, and multicolor |
| Functional Coatings | TiN, TiCN, CrN, ZrN, TiAlN, CrAlN, DLC and other hard & wear-resistant coatings. |
| Core Components | Arc target, control system, pump |
| Application | Stainless steel, metal, sanitary ware, ceramic tableware, jewelry, glass, tile |
| Customization | Customized size, target material, color, fixture design, and process plan |
| Service | Mechanical/sample test reports, video outgoing-inspection, and technical guidance. |
Product Detail
Specifications of PVD Coating Machine for Furniture:
| Model Number | Dimension DxH (mm) | Ultimate Vacuum (Pa) | Pumping Time (Min) | Targets (PCS) | Total Power (KW) |
| DZ1214 | 1200*1400mm | ≤8×10⁻⁴ | ＜5 | 10 | 50 |
| DZ1416 | 1400*1600mm | ≤8×10⁻⁴ | ＜5 | 14 | 60 |
| DZ1618 | 1600*1800mm | ≤8×10⁻⁴ | ＜5 | 21 | 80 |
| DZ1818 | 1800*1800mm | ≤8×10⁻⁴ | ＜5 | 28 | 110 |
| DZ2118 | 2100x1800mm | ≤8×10⁻⁴ | ＜5 | 32 | 120 |
*Equipment specifications can be customized according to customer requirements. Height or depth can range from 600mm to 10000mm.
Features of PVD Coating Machine for Furniture:
Advanced multi-arc ion PVD technology: It ensures uniform and highly adherent coatings, preventing peeling even on frequently used furniture surfaces.
Wear-Resistant and Corrosion-Resistant: PVD films provide excellent durability and corrosion resistance, extending the lifespan of stainless steel, aluminum, and metal furniture parts while reducing maintenance costs.
Rich Colors & Decorative Appeal: Supports a wide range of decorative colors such as gold, black, and champagne, perfect for modern furniture designs and enhancing product aesthetics and value.
Environmentally Friendly Process: Fully vacuum PVD coating with no chemical wastewater or harmful solvents, complying with international environmental standards.
High Efficiency for Mass Production: Supports automated, batch production, ideal for furniture manufacturers seeking stable, efficient output and cost reduction.
CGVAC Flexible PVD Machine Solutions: The equipment can be customized according to the size, shape, material and coating guarantee of furniture; the furniture coating products are suitable for various furniture.

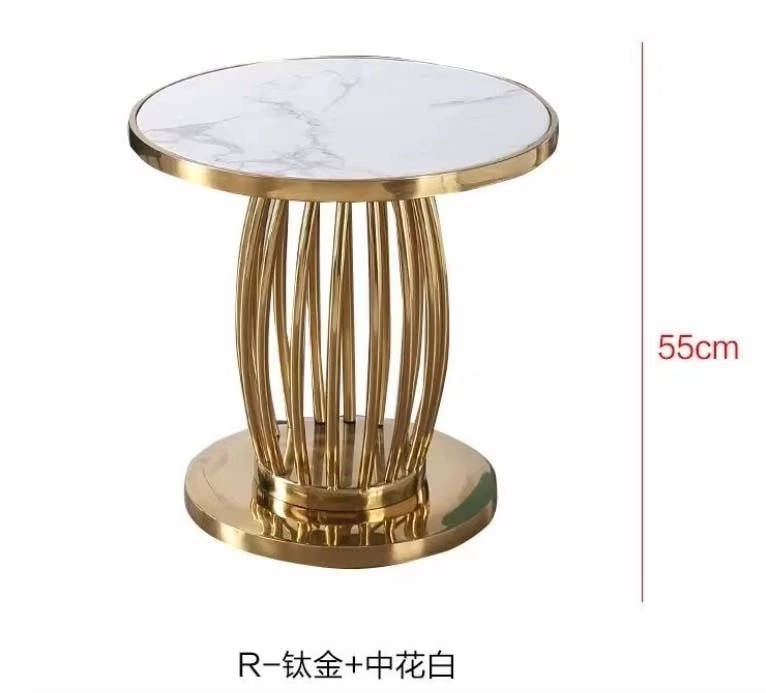

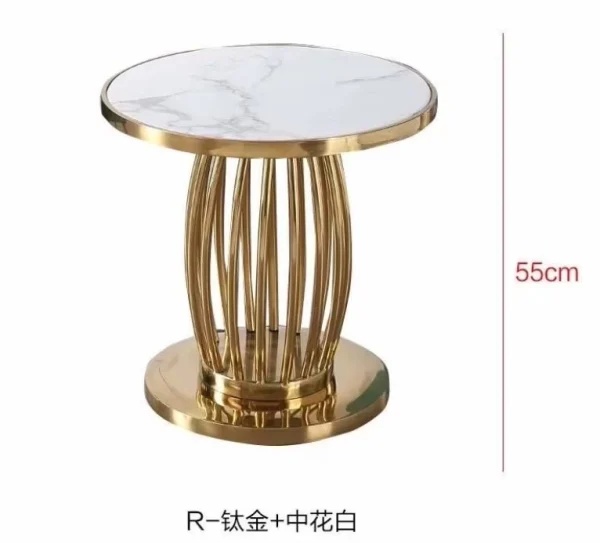

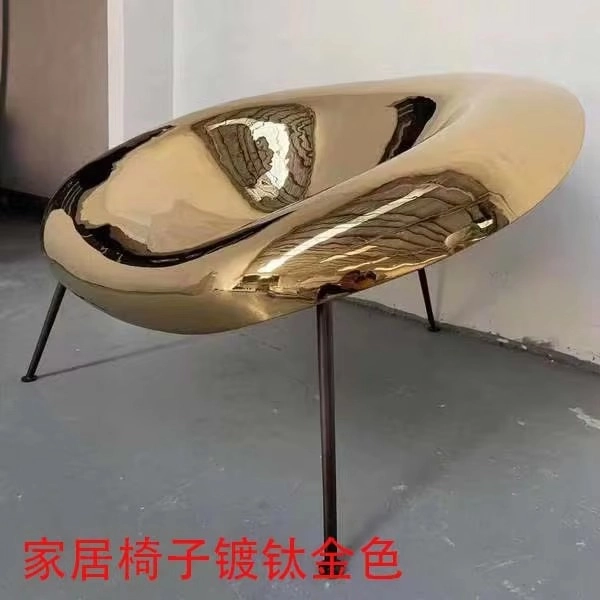

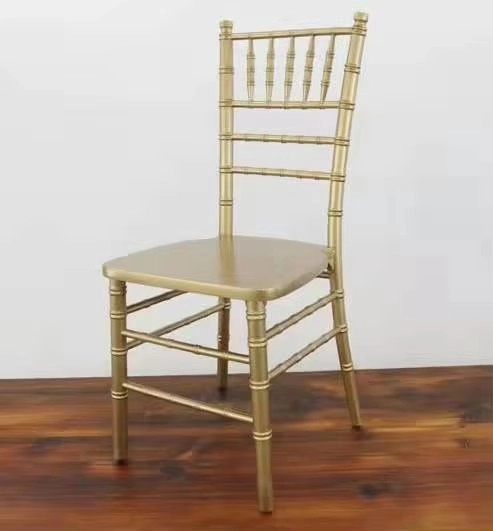

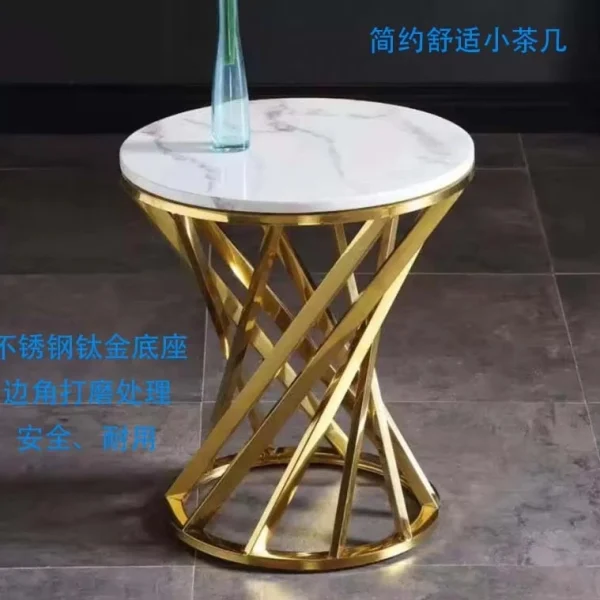

Applications of PVD Coating Machine for Furniture
Why Choose CGVAC, Professional PVD Vacuum Coating Machine Manufacturer
High Production Efficiency
Excellent Film Quality
Intelligent Automation
IndepFull-System In-House R&D
Customization Support
Technical Service
Related Products
Contact Us
FAQ
- Q: What types of materials can PVD coating machines process?
A: Sanitary ware, jewelry &beads, daily ceramics, stainless steel, glass, plastics, and electronic & optical components for both decorative and functional coatings.
- Q: Can the CGVAC PVD vacuum coating machines be customized?
A: Yes. We offer standard and fully customized solutions, including chamber size, coating process, capacity, and color etc.
- Q: Do you provide installation and training?
A: Yes. We provide global on-site installation, operator training, and remote technical support.
