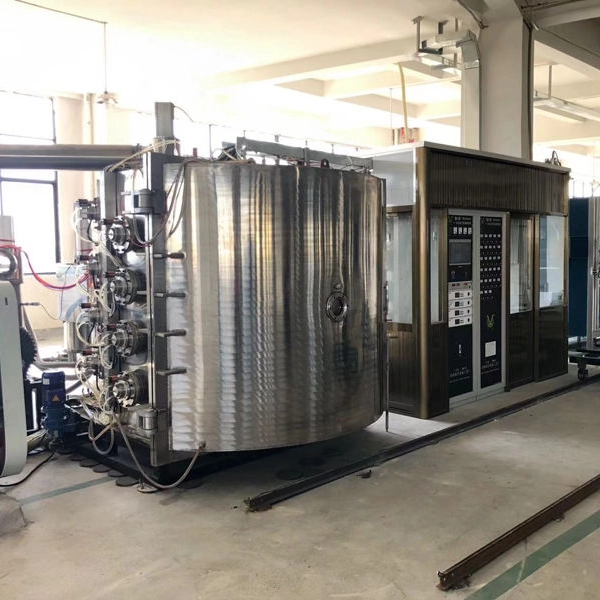

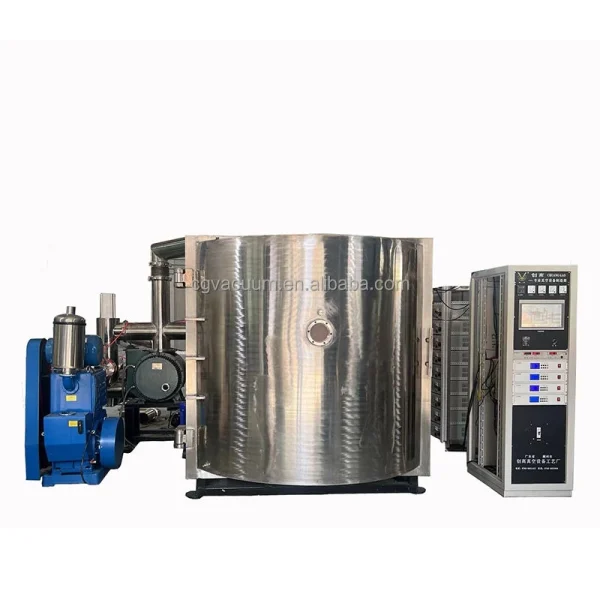

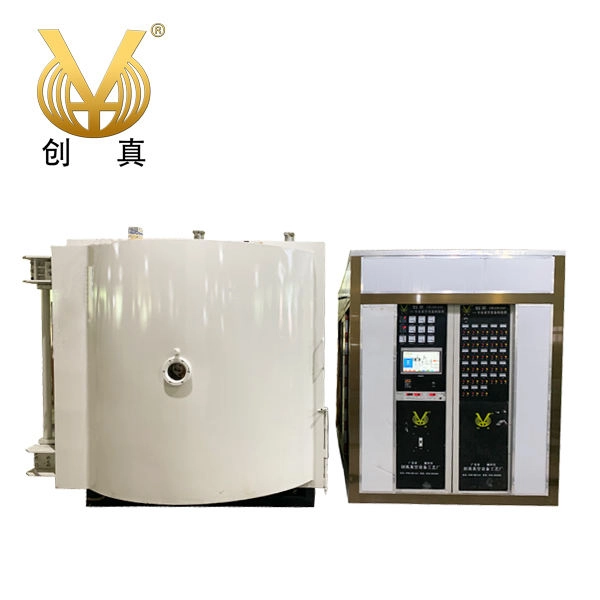

Magnetron Sputtering Vacuum Coating Machine, Sanitary Ware PVD Coating Machine
CGVAC magnetron sputtering vacuum coating machines deliver superior thin-film quality, fast production cycles, and fully customizable coating solutions for multi-industry applications. Welcome to contact us to optimize your production!
Technical Parameters:
| Target Materials | Titanium (Ti), Chromium (Cr), Zirconium (Zr), Stainless Steel, ITO, FTO and others |
| Industrial Gases | Argon (Ar), Nitrogen (N₂), Oxygen (O₂), H₂ (Hydrogen) |
| Coating Technology | Magnetron sputtering vacuum coating |
| Coating Color | Gold, rose gold, black, silver, blue, champagne, matte/satin colors, and different colors |
| Functional & Optical Films | ITO, SiO₂, TiO₂, Cr, Al, Ag, ITO/Ag/ITO, optical & electronic films |
| Core Components | Arc target, control system, pump |
| Application | Stainless steel, electronics & optics, glass, automotive interior & components |
| Customization | Customized size, target material, color, fixture design, and process plan |
| Service | Mechanical/sample test reports, video outgoing-inspection, and technical guidance |
Product Detail
Specifications of Magetron Sputtering Vacuum Coating Machine:
| Model Number | Dimension DxH (mm) | Ultimate Vacuum (Pa) | Pumping Time (Min) | Supttering Power (kW) | Total Power (kW) |
| CZ1214 | 1200*1400mm | ≤8×10⁻⁴ | ＜5 | 40 | 50 |
| CZ1416 | 1400*1600mm | ≤8×10⁻⁴ | ＜5 | 60 | 60 |
| CZ1618 | 1600*1800mm | ≤8×10⁻⁴ | ＜5 | 80 | 80 |
| CZ1818 | 1800*1800mm | ≤8×10⁻⁴ | ＜5 | 160 | 110 |
| CZ2018 | 2000*1800mm | ≤8×10⁻⁴ | ＜5 | 160 | 120 |
*Equipment specifications can be customized according to customer requirements.
Features of Magetron Sputtering Vacuum Coating Machine:
Advanced Magnetron Sputtering Technology: High-energy plasma ejects target atoms onto the substrate, forming high-density, highly uniform, and strongly adhesive coatings with low thermal impact, ideal for ceramics, glass, metals, and heat-sensitive plastics.
Stable Vacuum System & Fast Pumping Speed: Achieves ≤8×10⁻⁴ Pa with ＜5-minute pumping time, ensuring fast cycle turnaround and high production efficiency.

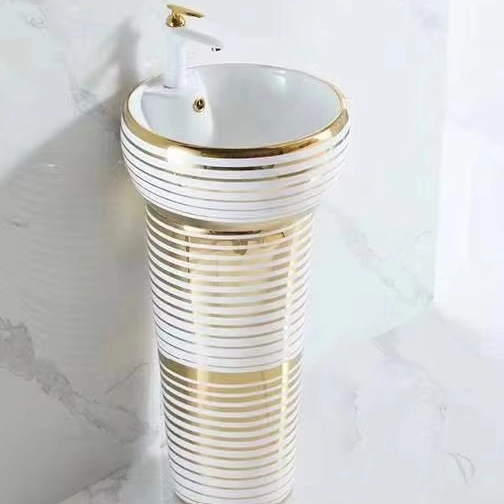

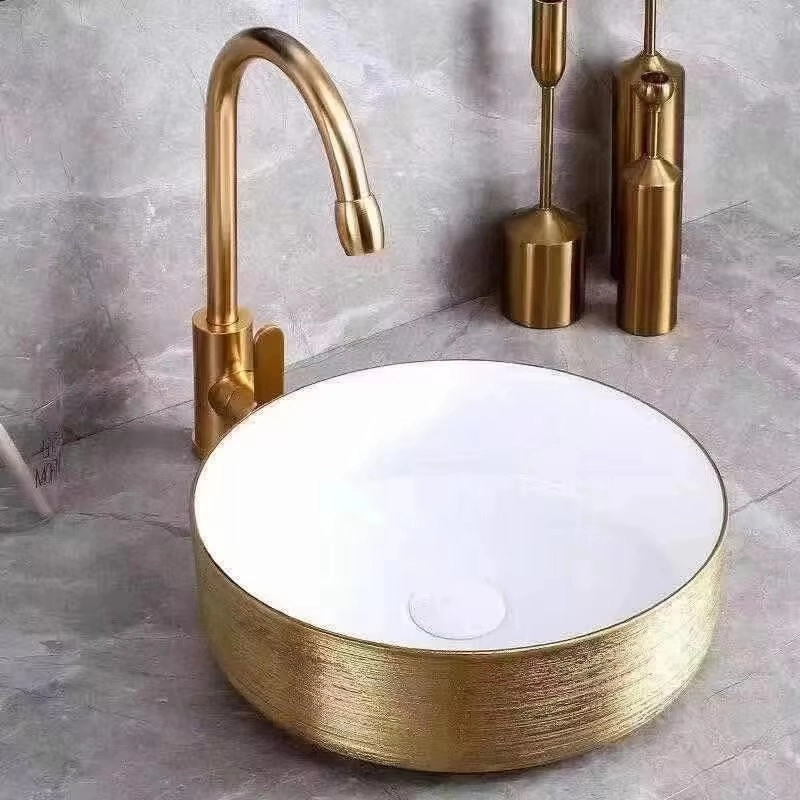

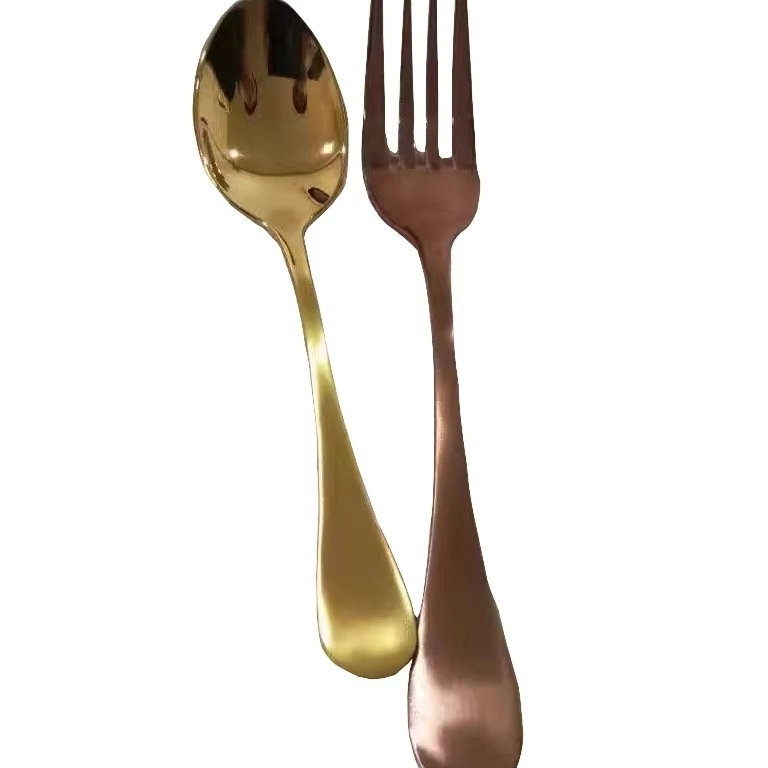

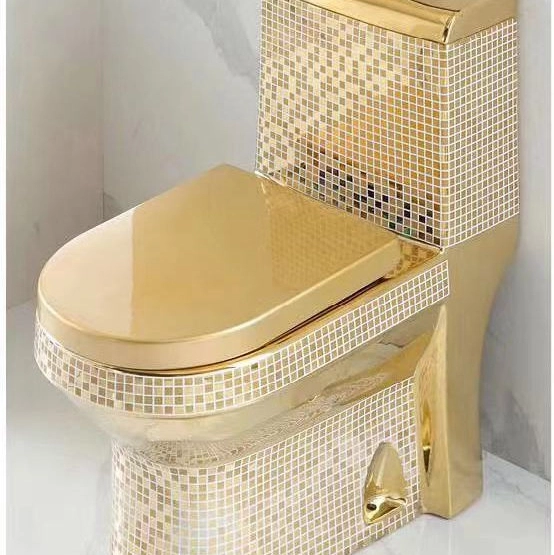

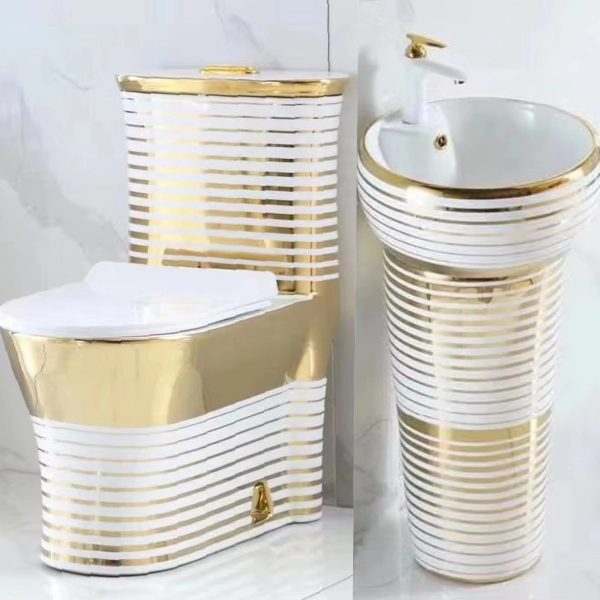

Multi-Industry Coating Compatibility: Supports a wide range of substrates, including ceramic sanitary ware, glassware, hardware, stainless steel, ABS, zinc, and electronic components etc.
Wide Color & Effect Options: Capable of producing TiN gold, silver, rose gold, black, iron red, rainbow, AB color, diamond blue, multi-color and more decorative & functional coatings.
Reliable PLC Automation System: Equipped with industrial-grade PLC, stable motors and pump groups for automated vacuum cycles, consistent process control, and repeatable results.
Strong Industrial Productivity: Models provide 10–30 L/h production capacity, suitable for continuous, large-scale manufacturing.
Comprehensive Support: CGVAC provides machine test reports, video outgoing inspection, online technical assistance, and post-installation process optimization for stable long-term operation.
Applications of Magnetron Sputtering Vacuum Coating Machine
Why Choose CGVAC, Professional PVD Vacuum Coating Machine Manufacturer
High Production Efficiency
Excellent Film Quality
Intelligent Automation
IndepFull-System In-House R&D
Customization Support
Technical Service
Related Products
Contact Us
FAQ
- Q: What types of materials can PVD coating machines process?
A: Sanitary ware, jewelry &beads, daily ceramics, stainless steel, glass, plastics, and electronic & optical components for both decorative and functional coatings.
- Q: Can the CGVAC PVD vacuum coating machines be customized?
A: Yes. We offer standard and fully customized solutions, including chamber size, coating process, capacity, and color etc.
- Q: Do you provide installation and training?
A: Yes. We provide global on-site installation, operator training, and remote technical support.
