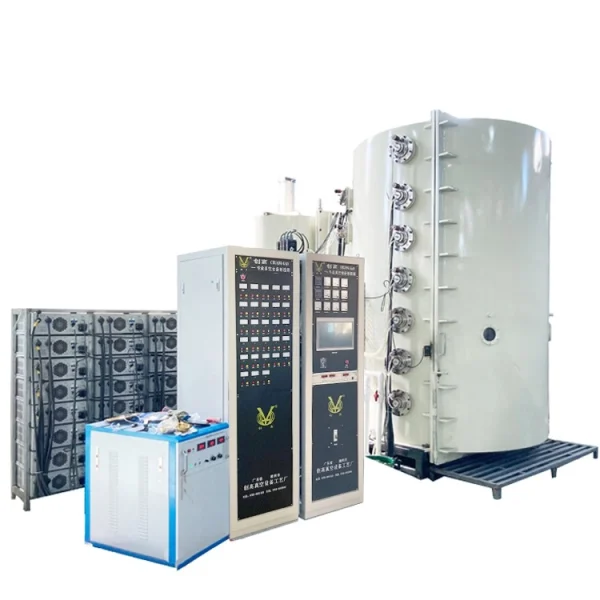

Jewelry PVD Coating Machine, Multi-Arc Ion Vacuum Coating Machine Manufacturer
Jewelry PVD coating machine uses multi-arc ion PVD vacuum coating, resulting in high film adhesion, corrosion resistance, uniformity, stability, and high production capacity. CGVAC provides customized complete coating solutions. Contact us now!
Technical Parameters:
| Target Materials | Titanium (Ti), Chromium (Cr), Zirconium (Zr), TiAl, Ni, Cu, Al, Fe, etc |
| Industrial gases | Argon (Ar), Nitrogen (N₂), Acetylene (C₂H₂), Oxygen (O₂) |
| Coating Technology | Multi-arc ion vacuum coating |

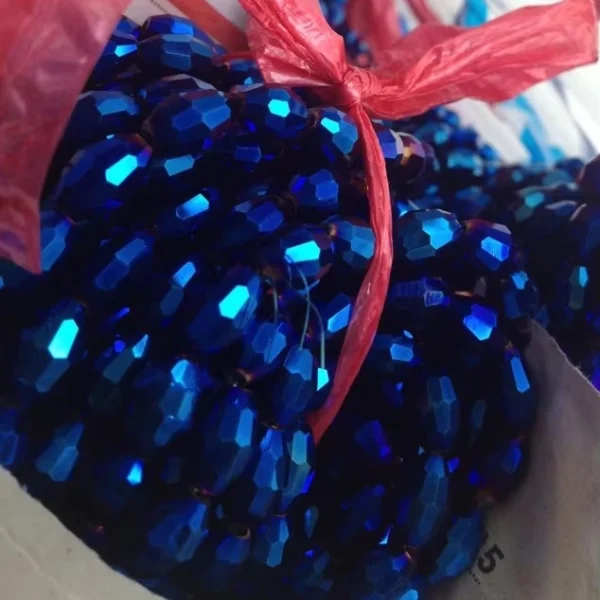

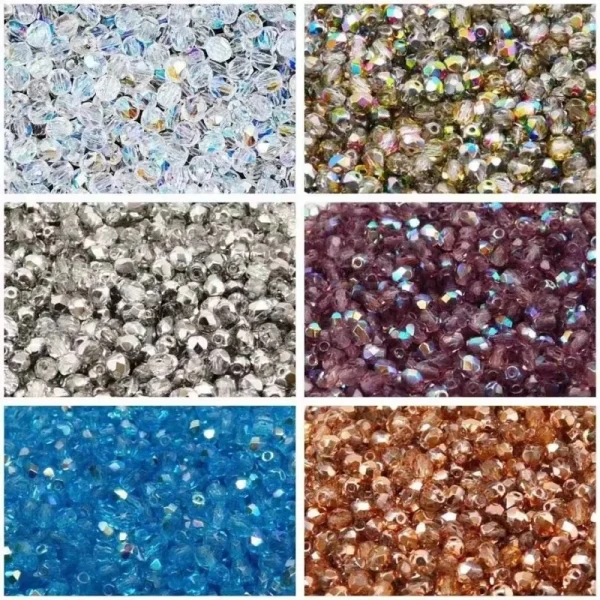

| Coating Color | Titanium silver, gold, rose gold, purple, sapphire blue, pearl, amber, deep gray, chrome black, and multicolor |
| Functional Coatings | TiN, TiCN, CrN, ZrN, TiAlN, CrAlN, DLC and other hard & wear-resistant coatings. |
| Core Components | Arc target, control system, pump |

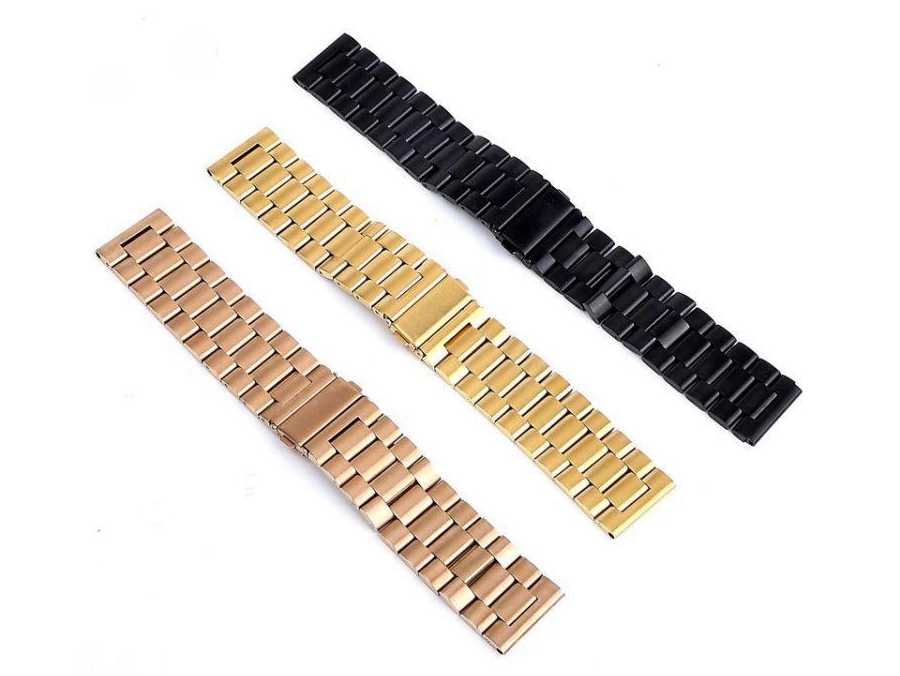

| Application | Stainless steel, metal, sanitary ware, ceramic tableware, jewelry, glass, tile |
| Customization | Customized size, target material, color, fixture design, and process plan |
| Service | Mechanical/sample test reports, video outgoing-inspection, and technical guidance. |
Product Detail
Specifications of Jewelry PVD Coating Machine:
| Model Number | Dimension DxH (mm) | Ultimate Vacuum (Pa) | Pumping Time (Min) | Targets (PCS) | Total Power (KW) |
| DZ1214 | 1200*1400mm | ≤8×10⁻⁴ | ＜5 | 10 | 50 |
| DZ1416 | 1400*1600mm | ≤8×10⁻⁴ | ＜5 | 14 | 60 |
| DZ1618 | 1600*1800mm | ≤8×10⁻⁴ | ＜5 | 21 | 80 |
| DZ1818 | 1800*1800mm | ≤8×10⁻⁴ | ＜5 | 28 | 110 |
| DZ2118 | 2100x1800mm | ≤8×10⁻⁴ | ＜5 | 32 | 120 |
*Equipment specifications can be customized according to customer requirements, Height or depth can range from 600mm to 10000mm.
Feature of Jewelry PVD Coating Machine:
High Adhesion and Dense Film Layer: The multi-arc ion source generates high-energy metal ions, resulting in strong adhesion, high hardness, and excellent wear and corrosion resistance, ensuring that jewelry will not fade over long-term wear.
Precise Control and High Batch Consistency: The PLC automation system precisely controls vacuum level, arc current, and gas flow rate, achieving uniform film thickness and stable color, solving the color difference problem in the jewelry industry.
High Efficiency and Multi-Target Design: The multi-arc target structure accelerates deposition speed, suitable for continuous batch production of small jewelry pieces, resulting in low unit cost.
Multi-Industry Applicability: Chuanggao’s multi-arc vacuum coating equipment is not only suitable for jewelry but can also cover various materials such as sanitary ware, hardware, stainless steel, glass, and plastics, improving return on investment.
Comprehensive Solution Support: CGVAC provides complete process solutions, fixture design, equipment customization, and after-sales service to help customers achieve rapid mass production and enhance product competitiveness.
Applications of Jewelry PVD Coating Machine
Why Choose CGVAC, Professional PVD Vacuum Coating Machine Manufacturer
High Production Efficiency
Excellent Film Quality
Intelligent Automation
IndepFull-System In-House R&D
Customization Support
Technical Service
Related Products
Contact Us
FAQ
- Q: What types of materials can PVD coating machines process?

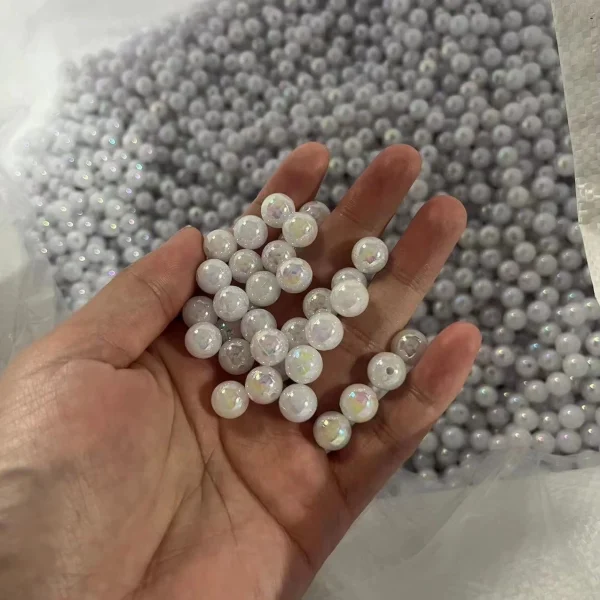

A: Sanitary ware, jewelry &beads, daily ceramics, stainless steel, glass, plastics, and electronic & optical components for both decorative and functional coatings.
- Q: Can the CGVAC PVD vacuum coating machines be customized?
A: Yes. We offer standard and fully customized solutions, including chamber size, coating process, capacity, and color etc.
- Q: Do you provide installation and training?
A: Yes. We provide global on-site installation, operator training, and remote technical support.
