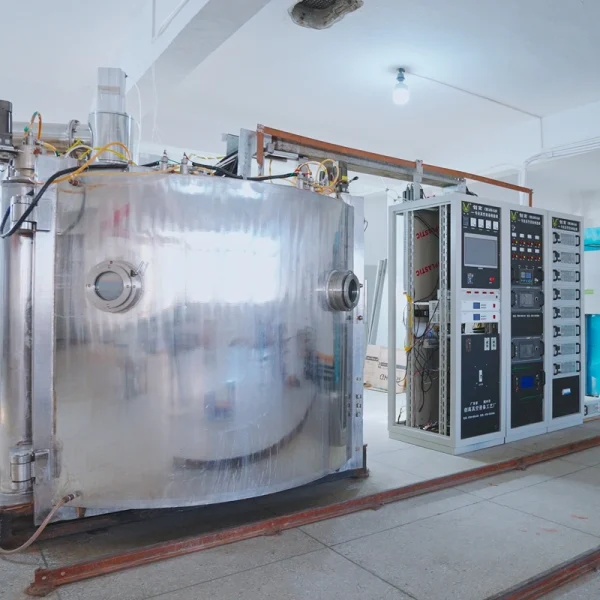

Glass PVD Coating Machine, Magnetron Sputtering Vacuum Coating Machine
CGVAC glass PVD vacuum coating machine with magnetron sputtering offers high-efficiency, precise, and flexible coating for flat or curved glass. Multi-target design, stable operation, and full custom solutions available. Contact us today!
Technical Parameters:
| Target Materials | Titanium (Ti), Chromium (Cr), Zirconium (Zr), Stainless Steel, ITO, FTO and others |
| Industrial Gases | Argon (Ar), Nitrogen (N₂), Oxygen (O₂), H₂ (Hydrogen) |
| Coating Technology | Magnetron sputtering vacuum coating |
| Coating Color | Gold, rose gold, black, silver, blue, champagne, matte/satin colors, and different colors |
| Functional & Optical Films | ITO, SiO₂, TiO₂, Cr, Al, Ag, ITO/Ag/ITO, optical & electronic films |
| Core Components | Arc target, control system, pump |
| Application | Stainless steel, electronics & optics, glass, automotive interior & components |
| Customization | Customized size, target material, color, fixture design, and process plan |
| Service | Mechanical/sample test reports, video outgoing-inspection, and technical guidance |
Product Detail
Specifications of Glass PVD Coating Machine:
| Model Number | Dimension DxH (mm) | Ultimate Vacuum (Pa) | Pumping Time (Min) | Supttering Power (kW) | Total Power (kW) |
| CZ1214 | 1200*1400mm | ≤8×10⁻⁴ | ＜5 | 40 | 50 |
| CZ1416 | 1400*1600mm | ≤8×10⁻⁴ | ＜5 | 60 | 60 |
| CZ1618 | 1600*1800mm | ≤8×10⁻⁴ | ＜5 | 80 | 80 |
| CZ1818 | 1800*1800mm | ≤8×10⁻⁴ | ＜5 | 160 | 110 |
| CZ2018 | 2000*1800mm | ≤8×10⁻⁴ | ＜5 | 160 | 120 |
*Equipment specifications can be customized according to customer requirements.
Features of Glass PVD Coating Machine:
High film adhesion and durability: High-energy sputtered ions bombard the glass surface, ensuring a tight bond between the film and the substrate, improving wear resistance, corrosion resistance, and peeling resistance, suitable for long-term use and high-frequency assembly scenarios.
Large-area uniform film deposition: Magnetron sputtering technology can achieve uniform thickness and stable gloss on glass flats, curved or complex surfaces, meeting the needs of decorative glass, optical glass, and functional coatings.
Precise and controllable film performance: The PLC system can precisely adjust sputtering power, gas flow rate, chamber vacuum, and deposition time, achieving precise control of multilayer films, functional films, and customized decorative films, ensuring consistency in mass production.
High throughput and batch processing capacity: Multi-target and rotating tooling design allows for simultaneous processing of glass sheets, glassware, and complex products, significantly improving production efficiency.
Comprehensive support from the CGVAC manufacturer: We provide a complete solution from equipment customization, chamber design, fixture solutions, to process formulation and after-sales service, helping customers quickly achieve high-quality coatings.
Applications of Glass PVD Coating Machine
Why Choose CGVAC, Professional PVD Vacuum Coating Machine Manufacturer
High Production Efficiency
Excellent Film Quality
Intelligent Automation
IndepFull-System In-House R&D
Customization Support
Technical Service
Related Products
Contact Us
FAQ
- Q: What types of materials can PVD coating machines process?
A: Sanitary ware, jewelry &beads, daily ceramics, stainless steel, glass, plastics, and electronic & optical components for both decorative and functional coatings.
- Q: Can the CGVAC PVD vacuum coating machines be customized?
A: Yes. We offer standard and fully customized solutions, including chamber size, coating process, capacity, and color etc.
- Q: Do you provide installation and training?
A: Yes. We provide global on-site installation, operator training, and remote technical support.
