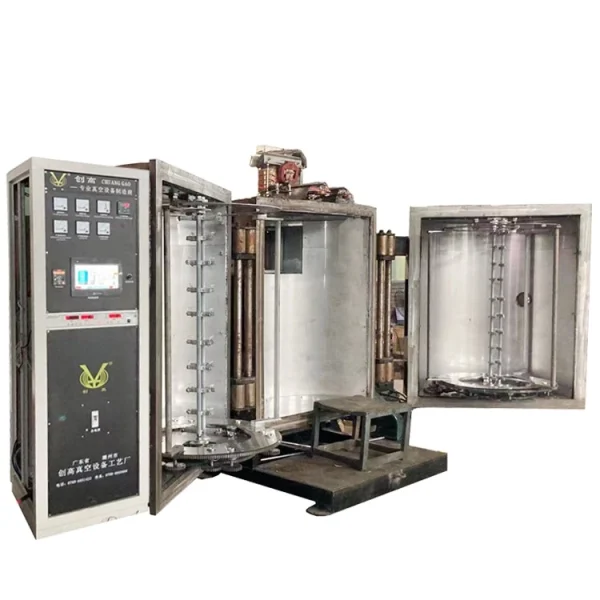

Ceramics PVD Coating Machine, Evaporation Vacuum Coating Machine for Ceramic Dinnerware
CGVAC ceramic PVD coating machines with high-efficiency evaporation PVD coating. Stable film quality, strong adhesion, fast cycle time, and fully customized fixtures. Designed by CGVAC with robust engineering and global technical support. Contact us for ceramics coating solutions and quotations.
Technical Parameters:
| Target Materials | Al Wire, Cu, Ag, Cr (thermal), Decorative Metals |
| Coating Technology | Evaporation vacuum coating |
| Functional & Optical Films | Mainly for decorative coatings, it can be integrated with UV coating or spray layers. |
| Core Components | Arc target, control system, pump |
| Application | Plastics, daily ceramics, glass, jewelry & beads, stainless steel |
| Customization | Customized size, target material, color, fixture design, and process plan |
| Service | Mechanical/sample test reports, video outgoing-inspection, and technical guidance. |
Product Detail
Specifications of Ceramics PVD Coating Machine:
| Model Number | Dimension DxH (mm) | Ultimate Vacuum (Pa) | Pumping Time (Min) | Total Power (kW) |
| ZZ1214 | 1200*1400mm | ≤8×10⁻⁴ | ＜5 | 35 |
| ZZ1416 | 1400*1600mm | ≤8×10⁻⁴ | ＜5 | 65 |
| ZZ1618 | 1600*1800mm | ≤8×10⁻⁴ | ＜5 | 75 |
| ZZ1820 | 1800*2000mm | ≤8×10⁻⁴ | ＜5 | 90 |
| ZZ2020 | 2000*2000mm | ≤8×10⁻⁴ | ＜5 | 105 |
*Equipment specifications can be customized according to customer requirements.
Features of Ceramics PVD Coating Machine:
Large-capacity chamber structure: The high-efficiency evaporation PVD equipment utilizes an enlarged vacuum chamber and an adjustable multi-layer rotating frame, accommodating ceramic parts of various sizes and shapes. This enables high-efficiency batch processing, significantly increasing production capacity and reducing unit coating costs.
High-efficiency evaporation source system: Equipped with a high-efficiency evaporation source and optimized evaporation path, it can quickly deposit decorative films in gold, rose gold, and other colors, resulting in saturated colors and uniform brightness, ideal for upgrading the appearance of mid-to-high-end everyday ceramics.
Plasma pretreatment technology: Built-in high-efficiency plasma cleaning device, specifically designed for the low surface energy characteristics of ceramics, significantly improves film adhesion and reduces problems such as film peeling and spots, ensuring stable quality in batch coatings.
Low-temperature coating process: Employing a precise temperature control system and low-temperature process, it effectively avoids cracking or glaze loss caused by thermal shock, suitable for all everyday and artistic ceramic products.
One-stop ceramic coating solution: As a professional vacuum coating machine manufacturer, CGVAC provides a full range of coating services for the ceramic industry, including equipment customization, fixture design, process formulation, color standardization, on-site commissioning and after-sales technical support, helping factories quickly build stable and high-capacity PVD coating production lines.
Custom Ceramics PVD Coating Machine
Why Choose CGVAC, Professional PVD Vacuum Coating Machine Manufacturer
High Production Efficiency
Excellent Film Quality
Intelligent Automation
IndepFull-System In-House R&D
Customization Support
Technical Service
Related Products
Contact Us
FAQ
- Q: What types of materials can PVD coating machines process?
A: Sanitary ware, jewelry &beads, daily ceramics, stainless steel, glass, plastics, and electronic & optical components for both decorative and functional coatings.
- Q: Can the CGVAC PVD vacuum coating machines be customized?
A: Yes. We offer standard and fully customized solutions, including chamber size, coating process, capacity, and color etc.
- Q: Do you provide installation and training?
A: Yes. We provide global on-site installation, operator training, and remote technical support.
