Functional PVD Coating Machine
CGVAC functional PVD coating machines offer multiple technology solutions for industrial film deposition. As a leading PVD vacuum coating manufacturer, we can customizable systems for your production coating needs.
Customized Systems · Functional Films · Industrial Performance
Customized Systems · Functional Films · Industrial Performance

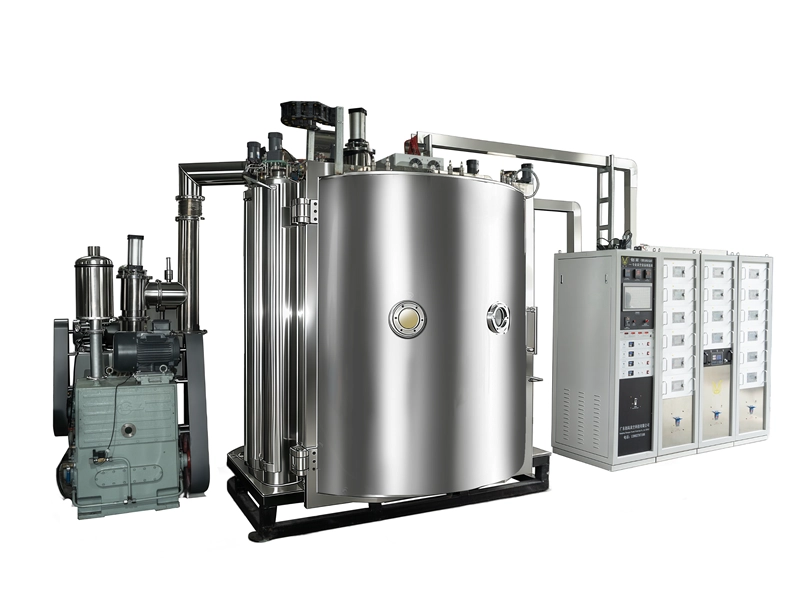

CGVAC Functional PVD Coating Machine
Functional PVD coating machines combine multi-arc, magnetron, and evaporation technologies for depositing industrial-grade films such as hard films, wear-resistant films, DLC, AF films, optical films, and protective films.
Suitable for high-end industries seeking performance, wear resistance, friction coefficient, and optical properties.
Advantages of Functional PVD Coating Machine
High-Performance Films
DLC, AF, anti-corrosion, optical, multi-layer coatings.
Multi-Process Capability
Combines arc, sputtering, and ion-assisted deposition.
Wide Substrate Compatibility
Metals, stainless steel, plastics, and engineering parts.
Precision Control
Maintains consistent properties for high-end components.
Custom Process Development
Tailored coating recipes for specific industries.
Applications of Functional PVD Coating Machine
CGVAC functional PVD vacuum coating machines serve multiple industries.Prodiving reliable coating solutions for industrial from electronics and optics to jewelry, platetics.
Electronics & Optics
AF, anti-glare, conductive, and optical coatings for devices and lenses.
Stainless Steel Components
Tools, mechanical parts, medical instruments requiring high durability.
Glass Surface Functionalization
Anti-fingerprint, hydrophobic, anti-glare, and protective coatings for screens and panels.
Plastics(functional layers)
Anti-fingerprint (AF) coatings for mobile shells, switches, and consumer electronics.
Custom Your Functional PVD Coating Machine
CGVAC offer full PVD vacuum coating machines customization, colors, sizes, and parameters tailored to your industrial production needs.
Process & Configuration Info
| Chamber Size (Optional) | Ø800mm – Ø3000mm (customizable) |
| Power Supply | High-power arc & sputtering power units, DC / MF / RF hybrid configuration |
| Coating Technology | Magnetron Sputtering, Arc Ion, E-Beam Evaporation, CVD |
| Target Materials | Titanium (Ti), Chromium (Cr), DLC / Carbon Targets, TiAl / TiSiN, Chromium Nitride / Titanium Nitride Systems |
| Functional Coatings | DLC, TCO, anti-fingerprint films; ITO, SiO₂, TiO₂ optical films; Anti-corrosion, wear-resistant, anti-reflective, conductivity coatings |
| Customization Options | Customized coating color, chamber size, target material/number, fixture design, and process plan |
Technical Specifications
| Item\Model | FC1214 | FC1416 | FC1618 | FC1818 | FC2018 |
| Chamber Dimension (D×H mm) | Ø1200×H1400 | Ø1400×H1600 | Ø1600×H1800 | Ø1800×H1800 | Ø2100×H1800 |
| Ultimate Vacuum (Pa) | ≤8×10⁻⁴ | ≤8×10⁻⁴ | ≤8×10⁻⁴ | ≤8×10⁻⁴ | ≤8×10⁻⁴ |
| Pumping Time to 2×10⁻¹ Pa (min) | ＜5 | ＜5 | ＜5 | ＜5 | ＜5 |
| * Equipment specifications can be customized according to customer requirements. | |||||
Our Functional PVD Coating Machine
Find the right vacuum coating machines for your production, fully customizable parameters and high-performance industrial solutions!
CGVAC Ceramics PVD Vacuum Coating Machine for Quality Ceramic Finishes
Sanitary Bathroom Ware PVD Coating Machine, Vacuum Coating Machine Manufacturer CGVAC
Functional PVD Coating Machine for Glass, Vacuum Coating Machine Manufacturer in China
PVD Coating Machine for Stainless Steel, Functional Vacuum Coating Machine Manufacturers in China
Plastic PVD Coating Machine CGVAC Functional PVD Coating Machine Manufacturer in China
Electronics PVD Coating Machine Magnetron Sputtering Chrome Vacuum Coating Machine

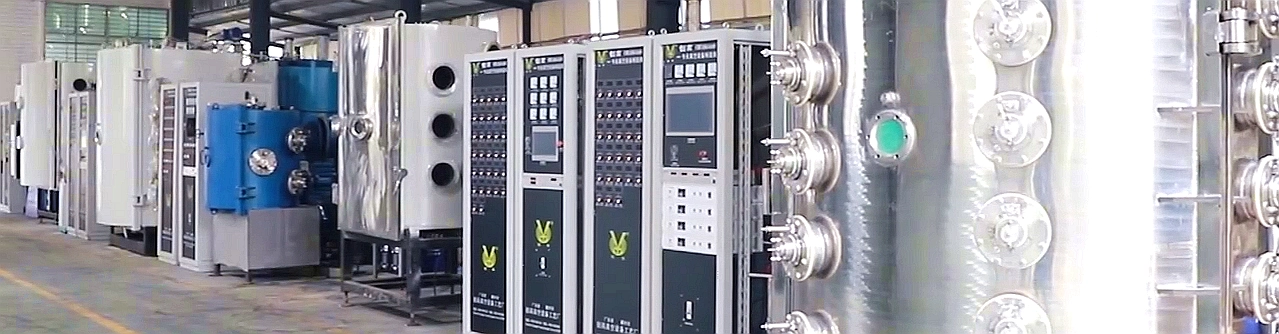

Work With a Reliable PVD Coating Machine Manufacturer
With advanced engineering, stable process control, and global project support, CGVAC helps factories build consistent high-quality coatings.
Flexible CustomizationIndependent R&DHigh-performance CoatingsExpert Technical Support
Contact Us
Tell us your material, application, and production needs—we’ll design and deliver the right PVD coating machine for you. Contact CGVAC today and upgrade your coating capability with confidence.
FAQ
- Q: What types of materials can PVD coating machines process?
A: Sanitary ware, jewelry &beads, daily ceramics, stainless steel, glass, plastics, and electronic & optical components for both decorative and functional coatings.
- Q: Can the CGVAC PVD vacuum coating machines be customized?
A: Yes. We offer standard and fully customized solutions, including chamber size, coating process, capacity, and color etc.
- Q: Do you provide installation and training?
A: Yes. We provide global on-site installation, operator training, and remote technical support.
